Water reducer Abstracto
Water reducer acts as a critical admixture for concrete strength and pumpability. It optimizes concrete workability for construction. This paper analyzes its working mechanism and influencing factors. It introduces a test method to find the optimal dosage. The method verifies compatibility between reductor de agua and cement. It guarantees construction quality and cuts project costs reliably.
Water reducer secures concrete strength and meets pumping requirements. It greatly improves concrete workability on construction sites. Pumpable concrete needs extra performance besides standard concrete properties. It demands good fluidity, workability and low slump loss. It also resists bleeding and segregation. High-performance concrete projects require precise tests. Engineers must confirm the optimal dosage of reductor de agua. They check compatibility between reductor de agua and cement. This key step stabilizes quality and controls construction expenses.
Special structural needs expand the use of high-flow concrete. Typical cases include cast-in-place piles and high-rise pumping concrete. Two mainstream ways boost concrete fluidity at present. Builders raise cement content or add reductor de agua into mixes.
Higher cement dosage can lift concrete slump. It increases water consumption even at a fixed water-cement ratio. This change harms concrete mix cohesion and durability. Excess trapped water forms pores after concrete hardens. Pores weaken concrete strength and speed steel corrosion. This method is not recommended for practical projects. Proper addition of reductor de agua avoids these drawbacks.
1. Working Mechanism of Concrete Water Reducer
Cement forms flocculated structures once mixed with water. These structures trap 10% to 30% of mixing water inside. Trapped water lowers the fluidity of fresh concrete mixes. Proper reductor de agua molecules adsorb onto cement particle surfaces. Their hydrophilic groups stretch toward the aqueous solution. Ionization brings identical charges to cement particle surfaces. Rising reductor de agua concentration strengthens electrostatic repulsion. Repulsive force breaks cement flocculation and releases trapped water. Released water improves concrete fluidity and compactness effectively. A suitable reductor de agua dosage reduces the water-cement ratio. It cuts cement consumption and raises early concrete strength. Early strength shortens formwork turnover and construction cycles. It finally lowers overall project investment.
Compatibility exists between high-efficiency reductor de agua and concrete components. Cement creates the biggest impact on matching performance. One cement type behaves differently with various high-efficiency reductor de agua products. One high-efficiency reductor de agua also varies across cement batches. Compatibility differences alter concrete rheological and working properties. They affect concrete strength and long-term durability. Engineers run comparative tests for reductor de agua selection and dosage. Test results confirm the optimal reductor de agua dosage for concrete mixes.
2. Factors Affecting Water Reducer Performance
Cement clinker compositions differ among cement brands. Higher MgO content amplifies reductor de agua impacts on concrete. It raises risks of microcracks in hardened concrete. High-efficiency reductor de agua shows selective adsorption on cement clinker minerals. C₃A immediately forms thick adsorption layers upon contact with water. More C₃A consumes more high-efficiency reductor de agua. C₃S and C₂S adsorb far less reductor de agua. Uneven adsorption changes the dispersion effect of high-efficiency reductor de agua. Cement with high C₃A content has poor compatibility with reductor de agua. It causes insufficient or even lost water reduction effects. Test data shows extended setting time for concrete mixed with reductor de agua.
Low water-cement ratio systems differ greatly from plain cement mortar. Reduced water cuts gypsum dissolution in cement paste. Low gypsum concentration fails to control C₃A hydration. This triggers flash set and fast slump loss. High-efficiency reductor de agua disturbs cement hydration kinetics. It reduces gypsum solubility in the liquid phase. Sulfate ion shortage lets sulfonate groups bind with C₃A. Binding consumes free reductor de agua and destroys cement dispersion.
It accelerates slump loss of fresh concrete mixes. Cement fineness and particle grading influence reductor de agua dispersion. Finer cement gains larger fluidity improvement at fixed reductor de agua dosage. Alkali content strongly affects fluidity of cement-reductor de agua systems. Higher alkali content reduces concrete mix fluidity. High-alkali cement weakens water reduction performance of high-efficiency reductor de agua.
3. Test Method for Optimal Water Reducer Dosage via Cement Paste Fluidity
Compatibility works in both directions between cement and reductor de agua. Water reducer type and quality dominate matching performance. Engineers select reductor de agua based on cement compatibility and construction demands. Poor compatibility between high-efficiency reductor de agua and cement causes these problems:
- Abnormal concrete setting occurs during mixing.
- Fresh concrete suffers severe slump loss.
- Obvious bleeding, stratification and segregation appear in mixes.
- High-efficiency reductor de agua loses part or all water reduction capacity.
- Concrete strength gains stall or drop at all curing ages.
- Concrete shrinkage rises sharply and induces cracking.
Engineers avoid these compatibility issues during reductor de agua selection. Water reducer dosage relates closely to cement consumption. It also depends on cement physical and chemical features. Traditional dosage follows product manuals and cement mass percentage. Cement chemical composition shifts between batches. Optimal reductor de agua dosage changes with cement sources. Pure percentage-based dosage cannot guarantee stable water reduction.

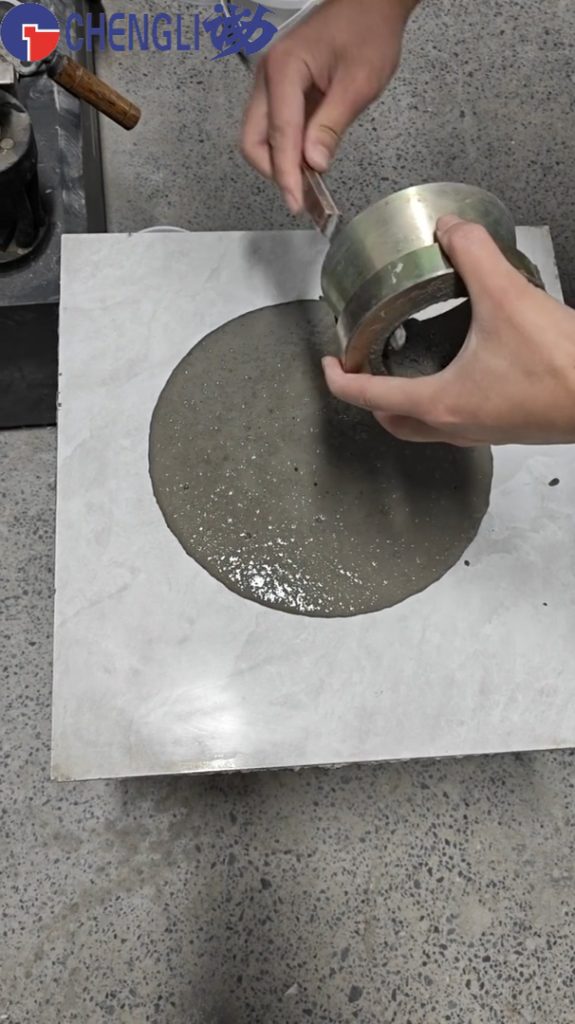

It often wastes reductor de agua materials in field practice. The author adopts cement paste fluidity tests after repeated trials. This method reliably identifies the optimal reductor de agua dosage. Operators reference the recommended dosage from reductor de agua manufacturers. They weigh 300 g cement, water and reductor de agua precisely. Operators mix cement, water and reductor de agua following standard procedures. They fill the fresh paste into a cone mold on clean glass. Operators lift the mold gradually and observe paste spreading behavior. They check whether fluidity meets pumping concrete requirements. Operators record water reduction rates at different reductor de agua dosages. They compare data and pick the best matching combination.
Water reducer addition sequence affects final water reduction performance. Comparative trials verify this rule clearly. For Longda high-efficiency reductor de agua, sequence cement → reductor de agua → water yields 22–23 cm spread. Sequence cement → water, then delayed reductor de agua addition yields 25–27 cm spread. Retarded addition improves compatibility between cement and reductor de agua. It maximizes the dispersion function of reductor de agua. Field construction follows this delayed addition principle. Add reductor de agua after short mixing to get optimal effects.
4. Conclusion
Cement chemical and physical properties vary by brand and batch. Engineers must test to confirm suitable reductor de agua and its optimal dosage. Manual percentage values alone cannot replace laboratory tests. The cement paste fluidity method determines reductor de agua dosage simply and reliably. It stabilizes construction quality and cuts project costs. It helps achieve ideal outcomes for concrete construction projects.
