Which Type of Superplasticizer is Best for Precast Component Production?

When selecting a superplasticizer for precast components (such as pipe piles, composite slabs, precast beams/columns, and blocks), the core requirements are high water reduction rate, rapid hardening and early strength, low bleeding, minimal slump loss, and good volume stability. It must not only ensure the workability of concrete during pouring (facilitating vibration/centrifugal forming) but also shorten the curing cycle (improving precast plant turnover rate) while avoiding quality issues like component cracking and insufficient strength. Based on current mainstream industry applications and performance adaptability, early-strength polycarboxylate superplasticizers (including composite types) are the optimal choice, with other types available for specific scenarios. A detailed analysis is as follows:

I. Core Performance Requirements of Superplasticizers for Precast Components

To accurately match the right superplasticizer, it’s first essential to clarify the key needs:

1. High water reduction rate: Reduce the water-binder ratio (typically ≤ 0.35) to enhance concrete strength (especially early strength) and density, meeting the strength requirements for formwork removal, hoisting, and prestressed tensioning of precast components (e.g., pipe piles need to reach over 75% of the design strength in 7 days).
2. Rapid hardening and early strength: Accelerate strength development, shorten curing time (reduce natural or steam curing cycles by 30%-50%), and improve production line efficiency.
3. Low bleeding/high cohesion: Prevent concrete segregation and bleeding, avoiding surface sanding of precast components and internal honeycombing—particularly critical for centrifugal forming (e.g., pipe piles) and vibration forming processes.
4. Minimal slump loss: Precast production typically involves “centralized mixing + transportation + pouring,” so concrete fluidity must remain stable for 1-2 hours to avoid pouring difficulties due to insufficient fluidity.
5. Volume stability: Reduce concrete shrinkage and cracking (precise component dimensions mean cracks directly affect durability and appearance).
6. Good compatibility: Strong adaptability with cement and mineral admixtures (fly ash, ground granulated blast-furnace slag), preventing abnormal setting and strength retrogression.

II. Adaptability Analysis of Different Superplasticizers for Precast Components

Mainstream superplasticizers currently include polycarboxylate, naphthalene-based, aliphatic, aminosulfonate, and composite types, with significant differences in adaptability:

1. Early-Strength Polycarboxylate Superplasticizers (First Choice)

These are the mainstream solution for precast component production (accounting for over 80% of applications), especially suitable for medium-to-high strength (C40 and above) and high-precision precast components (e.g., prestressed pipe piles, composite slabs, precast beams/columns).

• Core Advantages:
• High water reduction rate (25%-35%, far exceeding naphthalene-based types): Enables a significant reduction in the water-binder ratio, essential for C50-C80 high-strength precast components. Early strength is 40%-60% higher than reference concrete at 3 days, and 7-day strength meets formwork removal/tensioning requirements.
• Excellent early-strength performance: Molecular structure design (incorporating early-strength functional groups) combined with steam curing allows strength to reach over 50% of the design strength in 12-24 hours, shortening the curing cycle.
• Minimal slump loss (≤10% loss in 1 hour): Compatible with the precast plant’s assembly line operation of “mixing-transportation-pouring,” eliminating the need for on-site supplementary additions.
• Low bleeding rate and high cohesion: Prevents segregation and layering during centrifugal forming (e.g., pipe piles) or surface sanding during vibration forming, improving component appearance quality and durability.
• Strong compatibility: Adapts well to various cements, fly ash, and ground granulated blast-furnace slag, with low dosage (0.8%-1.5%). Environmentally friendly (formaldehyde-free), meeting green production requirements for precast components.
• Applicable Scenarios: Prestressed precast components (pipe piles, box girders), high-strength precast slabs, precast beams/columns, PC components, and other mid-to-high-end precast products—especially suitable for steam curing processes.

2. Composite Polycarboxylate Superplasticizers (Targeted Optimization Scenarios)

Based on early-strength polycarboxylate superplasticizers, they are compounded with early-strength agents (e.g., calcium chloride, calcium formate), retarders (e.g., sodium gluconate), or air-entraining agents to address specific needs:

• Winter production: Compound with early-strength agents (e.g., sodium nitrite + sodium sulfate composite system; note the risks of freezing and steel corrosion) to enhance early strength development in sub-zero environments and avoid prolonged curing periods.
• Massive precast components (e.g., large precast beams/columns): Compound with retarders to reduce the peak hydration heat, prevent temperature cracks, while retaining core early-strength performance.
• Centrifugally formed components (e.g., pipe piles, electric poles): Compound with viscosity-increasing components to further reduce bleeding rate, improve concrete density, and minimize internal stone exposure and honeycombing defects.

3. Naphthalene-Based High-Efficiency Superplasticizers (Alternative for Cost-Sensitive, Low-Strength Precast Components)

A traditional superplasticizer once widely used in precast production, it is gradually being replaced by polycarboxylate types. It is only suitable for C30-C40 ordinary precast components and extremely cost-sensitive scenarios (e.g., small blocks, non-load-bearing wall panels).

• Advantages: Moderate early-strength performance (20%-30% strength increase at 3 days), 30%-40% lower cost than polycarboxylate, and stable supply.
• Limitations:
• Low water reduction rate (15%-20%), unable to meet the needs of high-strength precast components;
• Rapid slump loss (≥30% loss in 1 hour), requiring on-site supplementation and affecting construction stability;
• High bleeding rate, prone to layering during centrifugal forming and poor appearance quality;
• Sensitive to cement types (e.g., poor adaptability to slag cement) and contains trace formaldehyde, resulting in insufficient environmental friendliness.

4. Aliphatic High-Efficiency Superplasticizers (Niche Alternative for Low-Demand Components)

With a water reduction rate (18%-22%) and early-strength performance slightly superior to naphthalene-based types, and a cost between naphthalene-based and polycarboxylate, they are suitable for low-strength, low-appearance-requirement components such as ordinary precast blocks and curbstones.

• Advantages: Stable setting time, better cement adaptability than naphthalene-based types, and formaldehyde-free pollution.
• Limitations: Inferior durability (freeze resistance, impermeability) compared to polycarboxylate; long-term use may cause surface color differences in concrete; slump loss is still faster than polycarboxylate.

5. Aminosulfonate Superplasticizers (Auxiliary for Special Scenarios)

High water reduction rate (20%-28%) and good workability, but significant retarding effect and insufficient early-strength performance. They are only suitable for massive precast components (e.g., large pipe galleries) or high-temperature construction in summer (to inhibit hydration heat). Must be compounded with early-strength agents; otherwise, curing cycles will be prolonged, reducing production efficiency.

III. Precise Superplasticizer Selection for Different Precast Component Types

Precast Component Type	Core Requirements	Recommended Superplasticizer Type	Notes

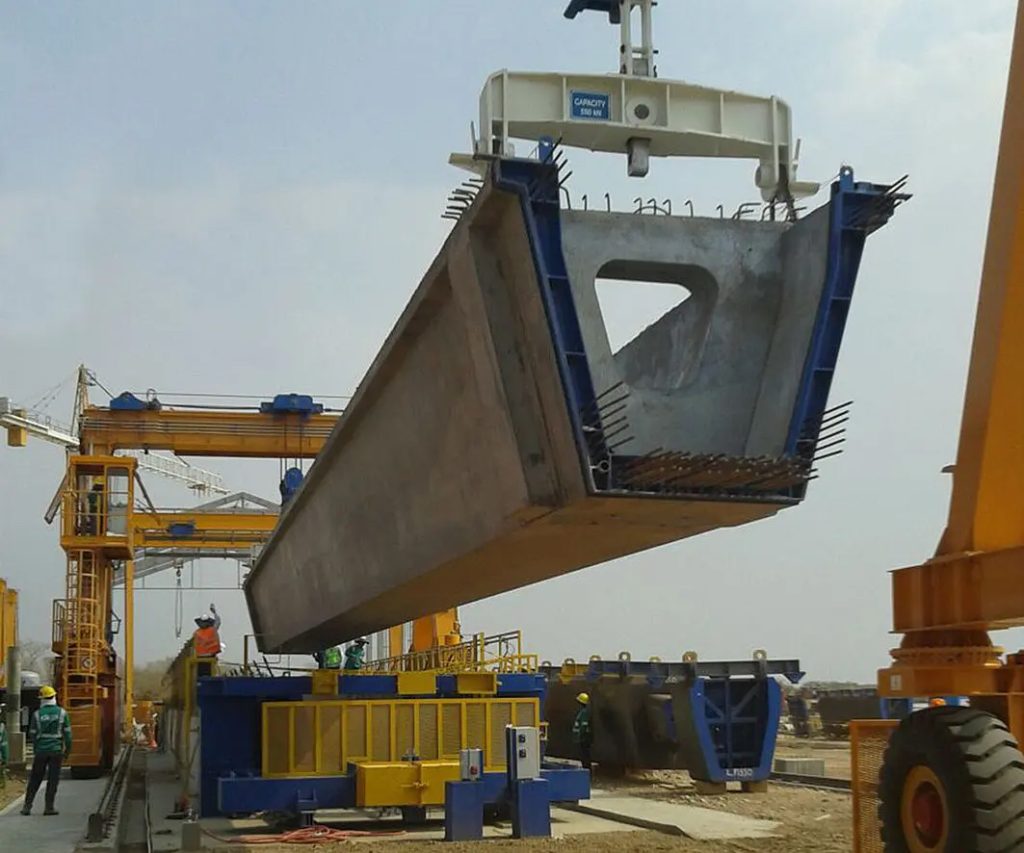

Prestressed pipe piles, box girders	High early strength, high density, low bleeding	Early-strength polycarboxylate superplasticizers	Meets 7-day tensioning strength requirements when combined with steam curing
Composite slabs, precast beams/columns (C40+)	Rapid hardening for formwork removal, flat appearance, good crack resistance	Early-strength polycarboxylate (compounded with a small amount of air-entraining agent)	Reduces surface bubbles and improves component precision

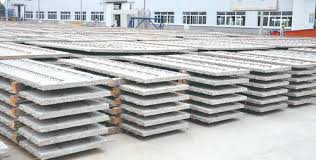

Ordinary precast blocks, small wall panels	Cost-sensitive, medium strength	Naphthalene-based/aliphatic superplasticizers	Not suitable for high-strength or high-appearance-requirement components
Massive precast components (e.g., pipe galleries)	Low hydration heat, retarding and crack prevention, stable late strength	Retarding polycarboxylate (compounded with early-strength agent)	Balances retarding and early-strength effects to avoid temperature cracks
Various precast components produced in winter	Strong early strength, good frost resistance	Early-strength polycarboxylate + composite early-strength agent (e.g., calcium formate)	Avoid using chloride-based early-strength agents alone (risk of steel corrosion)

IV. Key Considerations for Selection

1. Mandatory trial mixing verification: Due to significant differences in cement types (portland/ordinary portland), mineral admixture grades (fly ash quality, ground granulated blast-furnace slag activity), and mix ratios across precast plants, trial mixing is necessary to determine the optimal superplasticizer dosage (0.8%-1.5% for polycarboxylate, 1.5%-2.5% for naphthalene-based) and verify whether strength development, setting time, and slump loss meet requirements.
2. Avoid blindly pursuing low costs: Although naphthalene-based superplasticizers are cheaper, they increase curing time (reducing turnover rate) and waste rates (surface defects, insufficient strength), leading to higher long-term comprehensive costs than polycarboxylate.
3. Focus on environmental compliance: Precast components are mostly used in building structures, so formaldehyde-free, low-alkali superplasticizers should be selected (polycarboxylate meets GB 8076-2008 environmental standards; some naphthalene-based products contain formaldehyde and require caution).
4. Adapt to forming processes: For centrifugal forming (e.g., pipe piles), prioritize polycarboxylate with strong cohesion and bleeding rate ≤1%; for vibration forming (e.g., composite slabs), select polycarboxylate with minimal slump loss to reduce vibration time.

Conclusion

• Optimal Choice: Early-strength polycarboxylate superplasticizers (suitable for over 80% of precast components, especially high-strength, high-precision, and fast-turnover scenarios);
• Special Scenarios: Use “retarding polycarboxylate + early-strength agent” for massive precast components, and “early-strength polycarboxylate + composite early-strength agent” for winter production;
• Alternative Options: Only consider naphthalene-based/aliphatic superplasticizers for ordinary low-strength precast components (cost-sensitive), while accepting their performance limitations.

Currently, leading precast plants (e.g., pipe pile factories, PC component plants) primarily use early-strength polycarboxylate superplasticizers. Their comprehensive performance (strength, efficiency, quality stability) is far superior to traditional superplasticizers, making them the core admixture choice for the industrialized production of precast components.

Our Professional Technical Team Is Available 24/7 To Address Any Issues You May Encounter While Using Our Products. We Look Forward To Your Cooperation!
